Airbag Man Dual Rocker AIr Control Kit with 1 Gallon Air Tank and HD Compressor

This modular air control kit is a convenient system easily added to existing air suspension products or as part of a full Airbag Man package.

Usage

This system lets you inflate or deflate two air springs individually at the touch of a switch. It provides adjustment for front to rear and side to side levelling and comes equipped with tyre inflation.

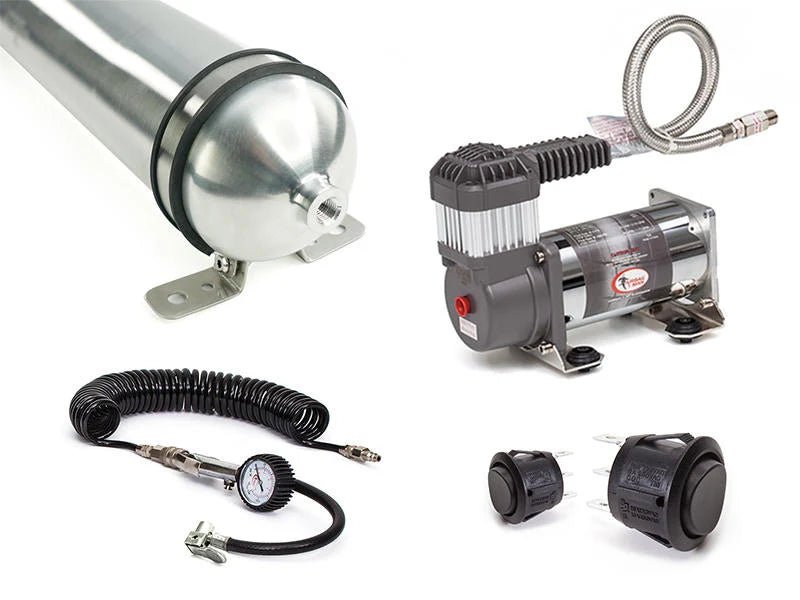

Includes:

Air Compressor: High-quality, heavy-duty air compressor

• 12-volt Air Compressor suits airbags and tyres
• 200PSI Working Pressure
• 50% Duty Cycle, 76 LPM / 2.7 CFM @ 0PSI, Max Amp Draw 35 Amps
• Dimensions: 155mm L x 81mm W x 124mm H
• Space Required (open at one end for ventilation):  205mm L x 81mm W x 174mm H


Air Tank: Lightweight Aluminium Air Tank

• 1 Gallon / 4 L Seamless aluminium air tank
• SAE J10 approved, no corrosion
• Max Working Pressure 200PSI
• Pressure tested to 1000PSI
• Dimensions: 605 mm L x 100mm D x 126mm H (with mounting legs attached)

Control Panel: Dual Rocker Airbag Control

• Airbag Control Switches for inflate and deflate
• Required 20mm notched hole and tyre inflation wand 7.5m / 25

Installation can be arranged at Cape To Ranges HQ in Hastings for an additional cost, or we can refer you to an installer in your area.
